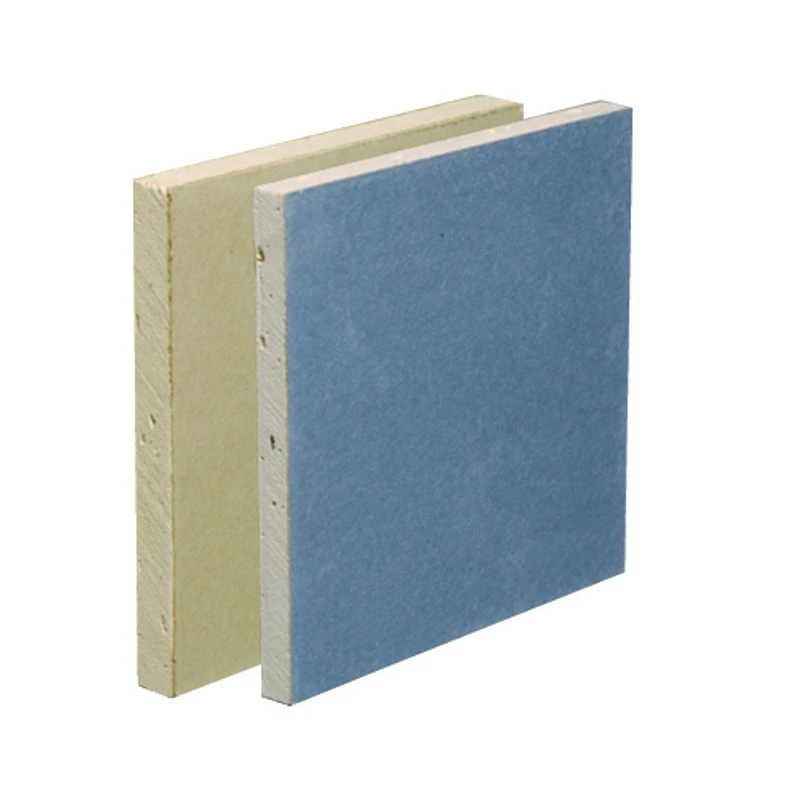

British Gypsum Gyproc Plasterboard Tapered Edge Soundbloc – 2.4m X 1.2m X 12.5mm

With a higher-density centre and certification to BES 6001 achieving a rating of “Very Good”, this Gyproc SoundBloc comprises an aerated gypsum core which is firmly bonded to and encased in strong paper liners. It has been designed for use in British Gypsum partition and wall systems where greater levels of sound insulation are needed.

When fixing the boards, keep the decorative side on the exterior to obtain a skim plaster finish or joint treatment. Lightly butt the boards together and never force them into place. Install the fixings no closer than 10mm from bound edges and 13mm from cut edges. Position cut edges to internal angles where possible, eliminating paper burrs with fine sandpaper. Stagger vertical and horizontal board joints between layers by a minimum of 600mm. Place the boards at the centre line of framing where this supports board ends or edges.

Features & Benefits: British Gypsum Gyproc Plasterboard Tapered Edge Soundbloc – 2.4m x 1.2m x 12.5mm

• Blue face and brown reverse side paper
• 0.25W/mK thermal conductivity
• 0.05m²K/W thermal resistance
• 10.6kg/m² weight
• 2.4m length x 1.2m width x 12.5mm thickness
• Higher-density centre
• Aerated gypsum core coated with strong paper liners
• Suitable for drylining internal surfaces
• Ideal for when greater levels of sound insulation are required

When plastering, the blue face of this Gyproc SoundBloc can be plastered with either Thistle MultiFinish or Thistle Board Finish. There should be a minimal delay between the completion of the lining and the commencement of plastering. The Gyproc jointing materials create a robust joint reinforcement and a crack-resistant, continuous smooth surface that is ready for priming and final decoration. Several jointing specifications are available to suit the site preference, method of application and board type. After the joint treatment has dried, decoration and any decorator’s preparation should follow as soon as possible.

This Gyproc SoundBloc can be cut by scoring with a sharp knife and snapping it over a straight edge or using a plasterboard saw. Holes for sockets or switch boxes should be cut out prior to the boards being fixed using a sharp knife or utility saw.

Standards & Certification

• Certified to BES 6001: Rating of ‘Very Good’
• Fire rating: Class 1 on both sides to BS 476

Please note:

• Power and hand tools must be handled with care and used in accordance with the recommendations of the manufacturers when cutting the boards.
• Only use power tools if you have been trained and instructed how to use them safely.
• It is advised you wear applicable personal protective equipment.
