CircofloPro Water Underfloor Heating Kit 120m2

Easy to install, this CircofloPro water underfloor heating kit includes smaller manifolds which allow them to be concealed from sight and subtly situated inside walls or cupboards. Thanks to the ultra-flexible 12mm pipes that are spaced evenly at 133mm centres, it can permit the heat to rise steadily throughout any room it has been fitted in while providing quicker warming times.

Due to the use of a lower flow temperature and operating off the boiler, this CircofloPro underfloor heating system is cheaper, safer and more energy efficient to run than standard radiator systems, saving you from costly energy bills. Building regulations require independent room temperature control, therefore, it is recommended to install one thermostat per room with common sense used in, for example, small WCs off hallways.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 120m2

• 120m² coverage
• Small manifolds
• Safer due to lower surface temperatures
• Energy-efficient and cost-effective
• Space-saving
• Easy to install and control
• Independently tested
• Range of floor fitting types available

As an increasingly popular approach to heating your home, this CircofloPro underfloor system can be installed to eradicate the need for radiators which take up space. This ensures that you have more room available for your appliances and furniture. Creating a cosy and warm environment within your home, it can be used in conjunction with a wide variety of assorted flooring materials including laminate, carpet and slate. However, it is always advised to check that your specific flooring material is compatible.

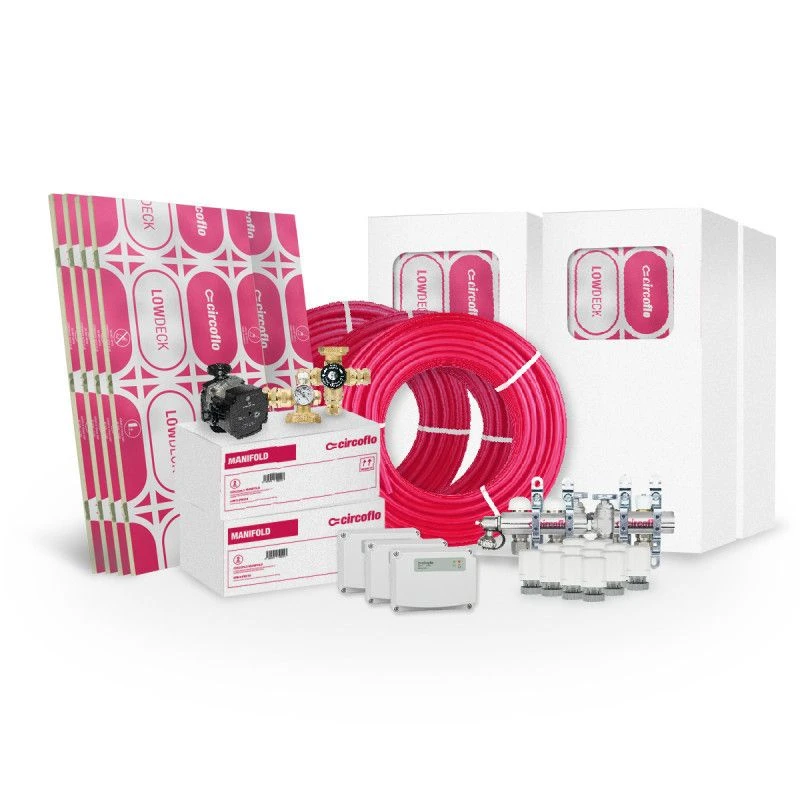

Circoflo Kit Contents

• 3 x 4 port manifold with pipe connectors
• 3 x 4 zone 230V hard-wired wiring centre
• 1 x mixing unit including pump
• 12 x 230V actuator valve for manifold
• 12 x 90m coil of 12mm x 1.4mm PERT UFH pipe

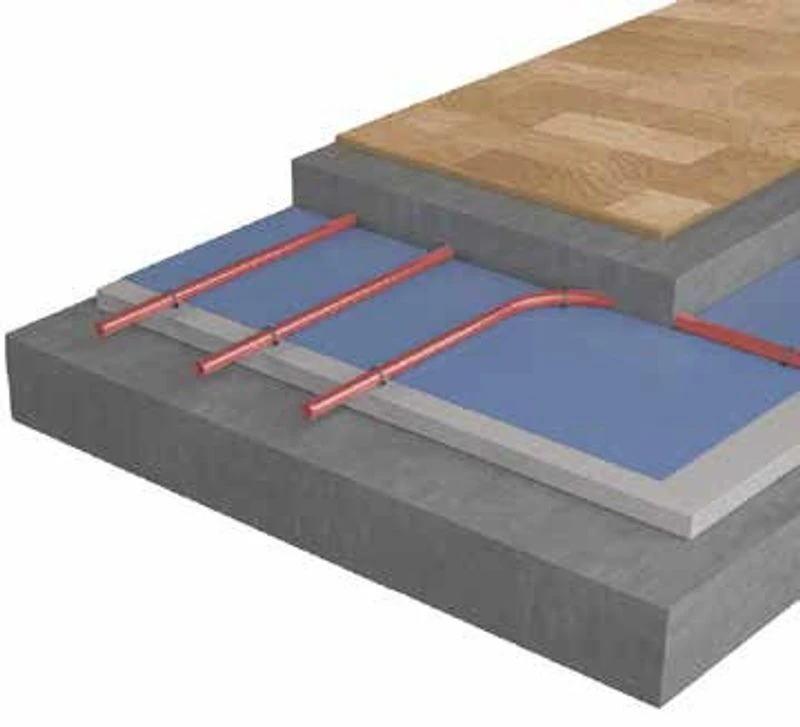

• For screed staple floors you will also get Circoflo:
• 5 x expansion foam with gaiter – 25m x 145mm x 11mm
• 6 x 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)

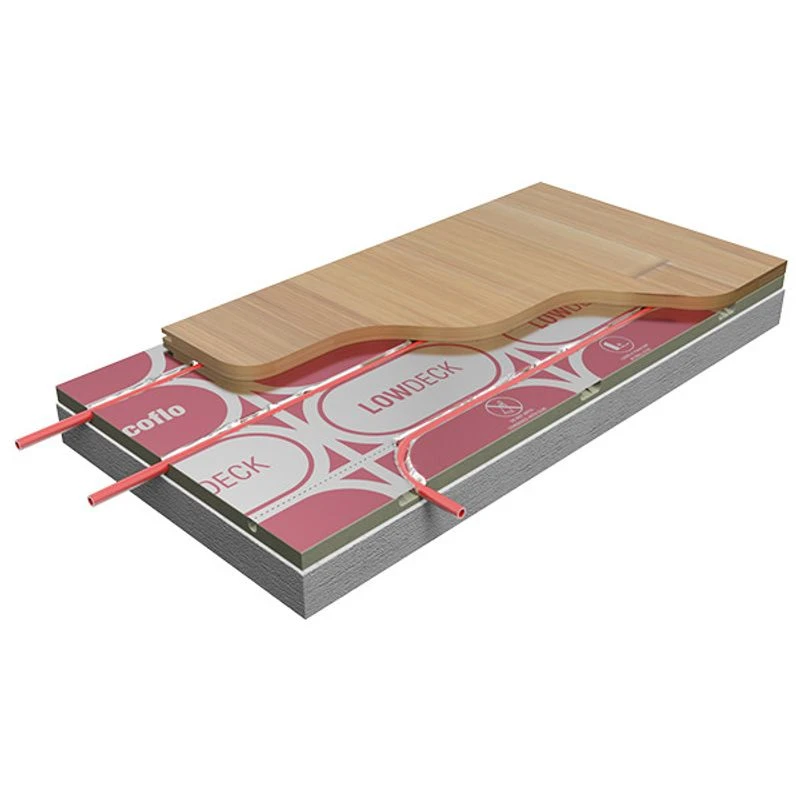

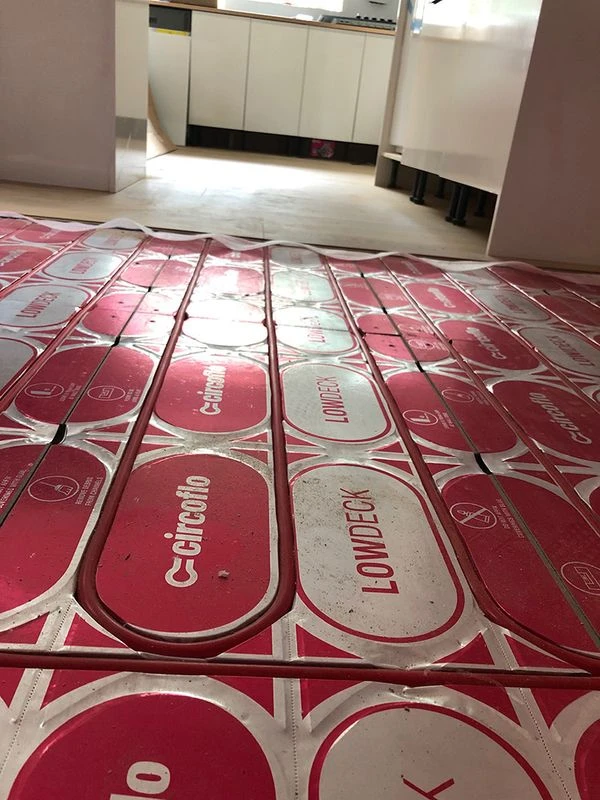

• For retrofit wooden floors you will also get:
• 79 x LowDeck Boards

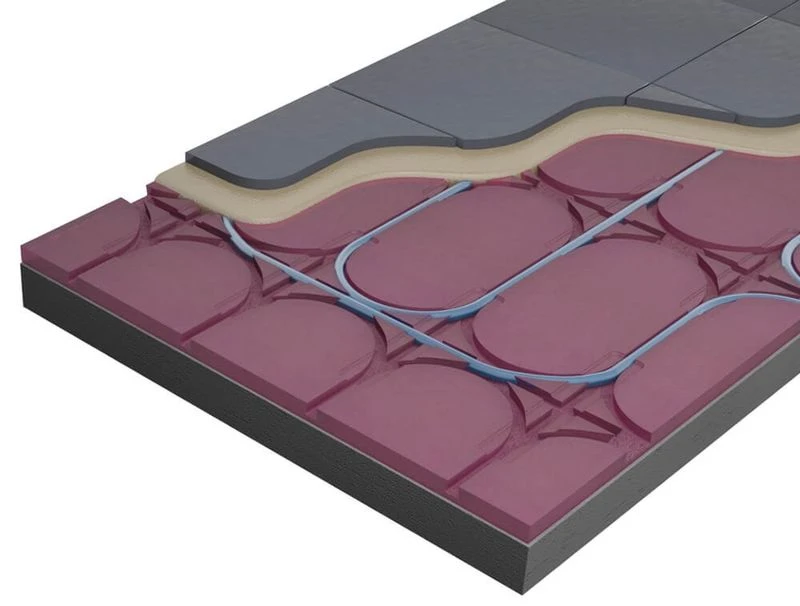

• For retrofit tiled floors you will also get Circoflo TileDeck:
• 52 x Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 72 x Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
• 26 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
• 16 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
• For retrofit vinyl floors you will also get Circoflo TileDeck:
• 50 x Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 114 x Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex
• 26 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
• 16 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus

Please note:

• This kit does NOT come with a CircofloPro Underfloor Heating Thermostat.
• Circoflo kits are supplied in panels and panel sizes are 800mm x 400mm. There is the appropriate quantity of panels supplied to meet the m² coverage of this kit.
• For information on how to create your own bespoke CircofloPro quote that is fully specified to your project, call our team of insulation experts.
