CircofloPro Water Underfloor Heating Kit 22m2

As an inexpensive alternative to running conventional underfloor heating systems, this CircofloPro water underfloor heating system involves a simple installation process. Heat can rise through rooms evenly due to the pipes being positioned at 133mm centres, while the smaller manifolds are flexible and suited to installation in walls or cupboards to keep them out of sight.

Designed to run off the boiler, this CircofloPro system has a flow temperature that is lower and safer. It is also energy-efficient, meaning that you can save on energy bills.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 22m2

• Space-saving and installed discreetly behind walls or in cupboards
• Cheaper to run in comparison to conventional systems
• Lower surface temperatures enhance safety
• Easier to control
• Independently tested
• Pipes laid at 133mm centres meaning 12mm pipe can be used
• Energy-efficient

When CircofloPro underfloor heating thermostats are implemented in hallways, it is easy to control the whole system. If you wish to control room temperatures separately, you can use different thermostats where needed.

Underfloor heating keeps homes warm and snug. There is no need for radiators, which means that you can dedicate that space to furniture and appliances. Underfloor heating is typically compatible with various flooring materials, including carpet, laminate and slate, but you should ensure that your flooring is suitable.

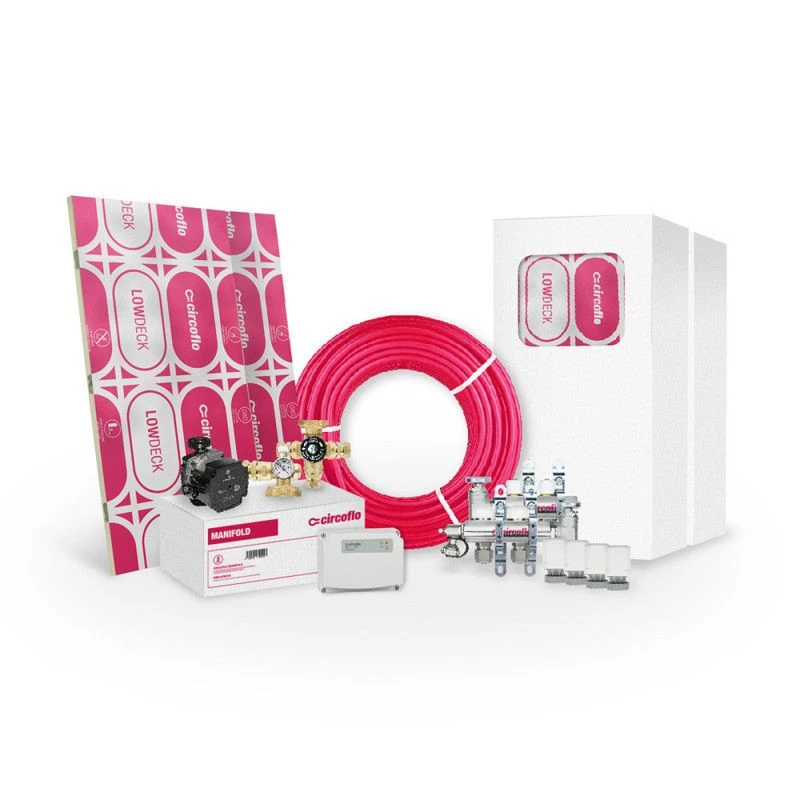

Circoflo Kit Contents

• 1 x Circoflo mixing unit including pump
• 1 x Circoflo 50m coil of 12mm x 1.4mm PERT UFH pipe
• 1 x Circoflo 3 port manifold with pipe connectors
• 3 x Circoflo 230V actuator valve for manifold
• 2 x Circoflo 70m coil of 12mm x 1.4mm PERT UFH pipe
• 1 x Circoflo 4 zone 230V hard-wired wiring centre

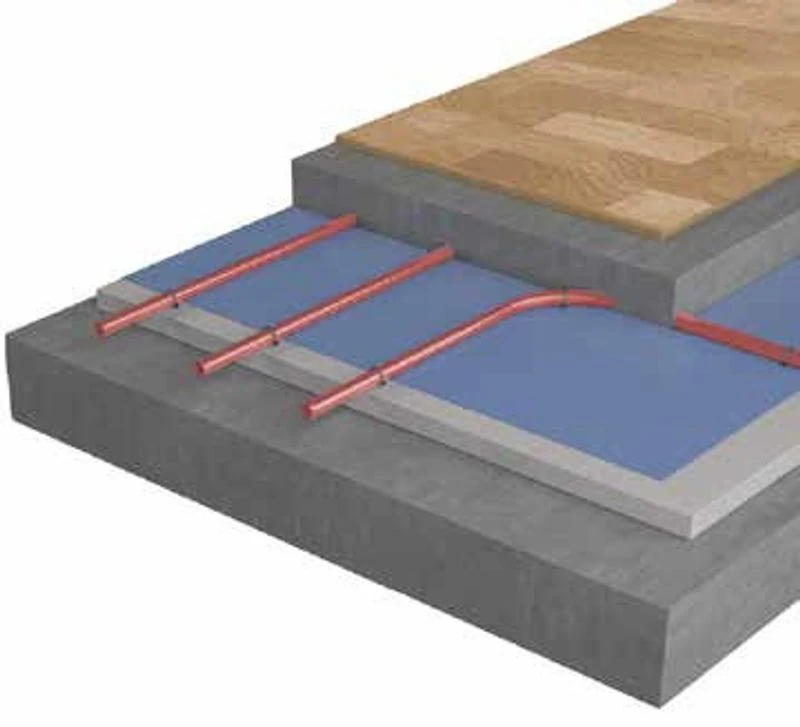

• For screed staple floors you will also get:
• 2 x Circoflo 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)
• 1 x Circoflo expansion foam with gaiter – 25m x 145mm x 11mm
• For retrofit vinyl floors you will also get:
• 3 x Circoflo TileDeck Primer Pack (for up to 25m²) – 5L Prime & grip & 1L Primeplus
• 5 x Circoflo TileDeck Adhesive Pack (for up to 5m²) – 20kg bag Ultimate Adhesive
• 10 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 21 x Circoflo TileDeck Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex

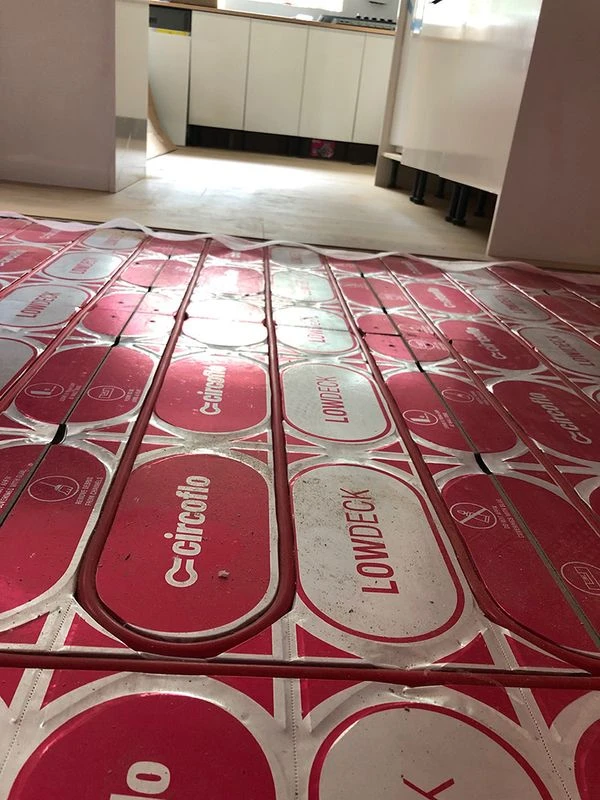

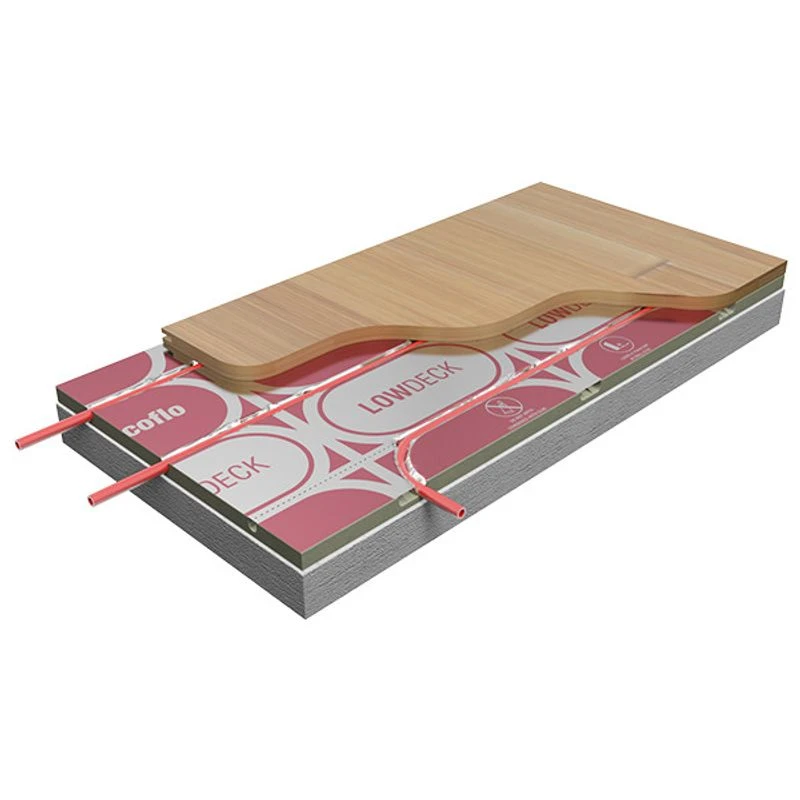

• For retrofit wooden floors you will also get:
• 15 x LowDeck Boards

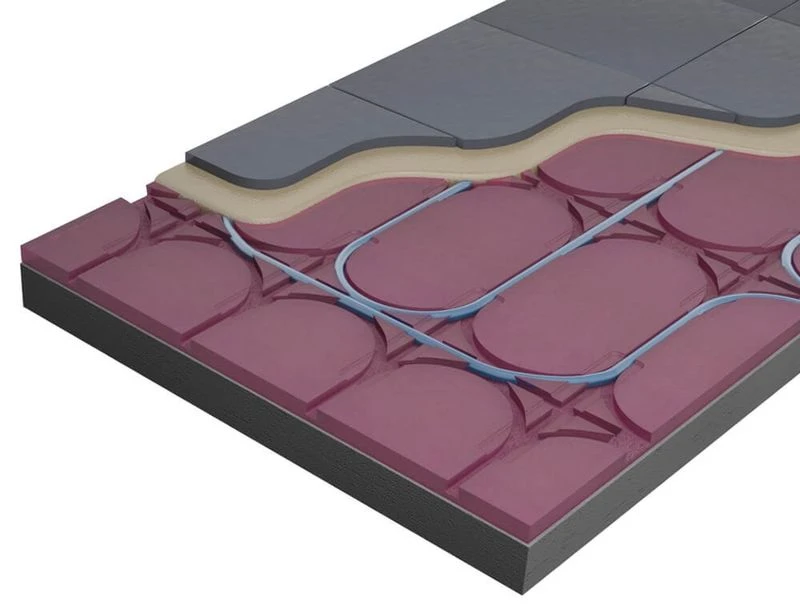

• For retrofit tiled floors you will also get:
• 10 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl – 8no. 18 mm x 800 mm x 400mm
• 3 x Circoflo TileDeck Primer Pack (for up to 25m²) – 5L Prime & grip & 1L Primeplus
• 5 x Circoflo TileDeck Adhesive Pack (for up to 5m²) – 20kg bag Ultimate Adhesive
• 14 x Circoflo TileDeck Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex

Please note:

• Circoflo kits are supplied in 800mm x 400mm panels. The correct number of panels is supplied to meet the m² coverage of the kit.
