CircofloPro Water Underfloor Heating Kit 40m2

If you’re looking for an easy-to-install and cost-effective underfloor heating system, search no further than this CircofloPro water-piped underfloor heating kit. With its evenly spaced pipes at 133mm centres, this system ensures that heat rises consistently throughout any room it is installed in.

What’s more, the smaller manifolds give you more flexibility in installation, allowing them to be hidden from view inside walls or cupboards. Not only is this CircofloPro system energy efficient, running off your boiler at a lower flow temperature, but it will also save you money on energy bills. You can control the whole system with the CircofloPro underfloor heating thermostat, which can be positioned in your hallway, or you can adjust the room temperatures individually by placing thermostats in various rooms.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 40m2

• Independently tested
• Pipes positioned at 133mm centres meaning 12mm pipe can be utilised
• Easy to install and control
• Safer to use due to lower surface temperatures
• Cheaper to run, saving you money on energy bills
• Space saving

With this underfloor heating system, you can enjoy a warm and cosy environment in your home without sacrificing valuable space for radiators, so you have more room for appliances and furniture. It can also be used with a wide range of flooring materials, such as carpet, slate and laminate, but make sure to check that your specific material is suitable.

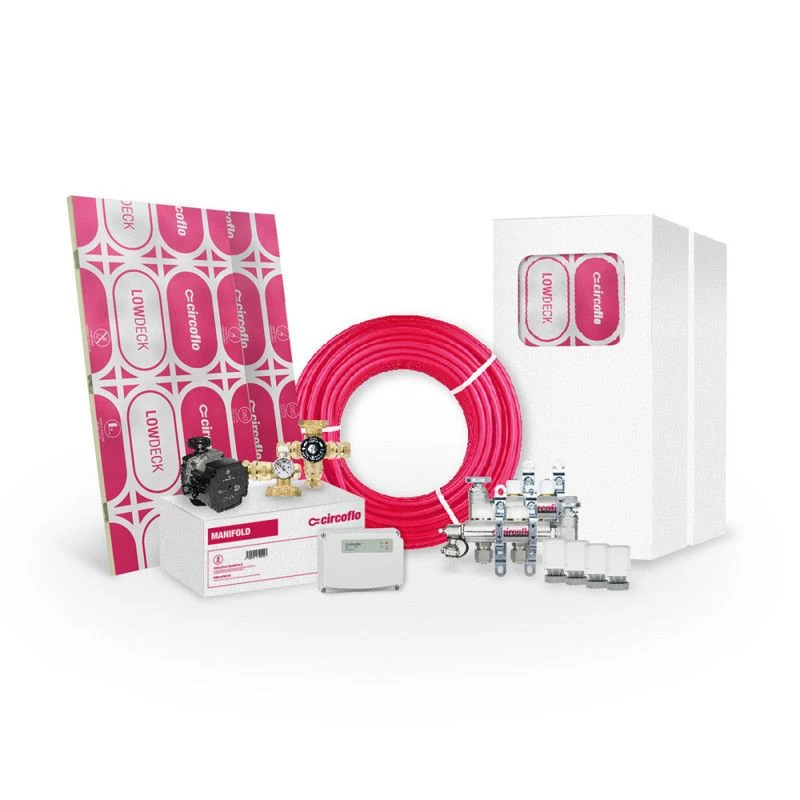

Circoflo Kit Contents

• 1 x 4 zone 230V hard-wired wiring centre
• 4 x 230V actuator valve for manifold
• 4 x 90m coil of 12mm x 1.4mm PERT UFH pipe
• 1 x mixing unit including pump
• 1 x 4 port manifold with pipe connectors

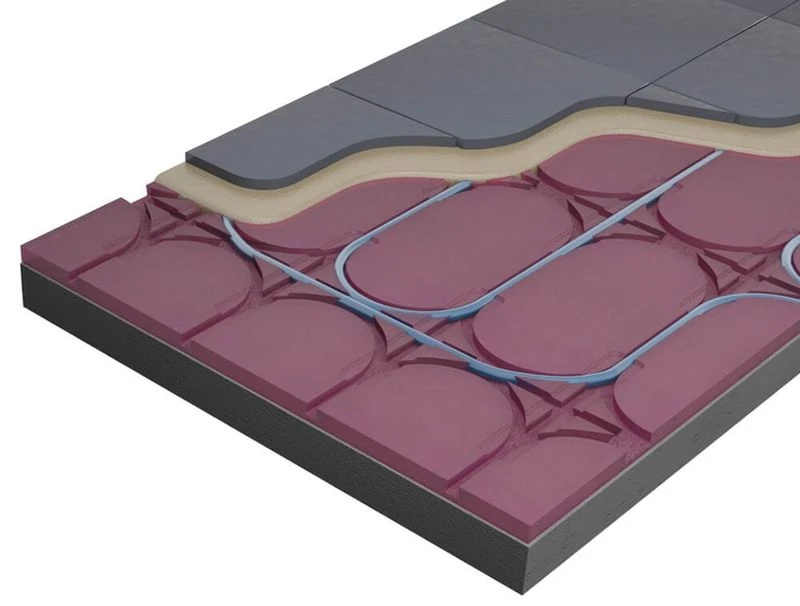

• For retrofit tiled floors you will also get Circoflo TileDeck:
• 24 x Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
• 9 x Adhesive Pack (for up to 5m²) 20kg Ultimate Adhesive
• 6 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
• 17 x Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• For retrofit vinyl floors you will also get Circoflo TileDeck:
• 38 x Levelling Pack (for up to 1.16m² with vinyl) 20kg bag Levelflex
• 9 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
• 6 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
• 17 x Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm

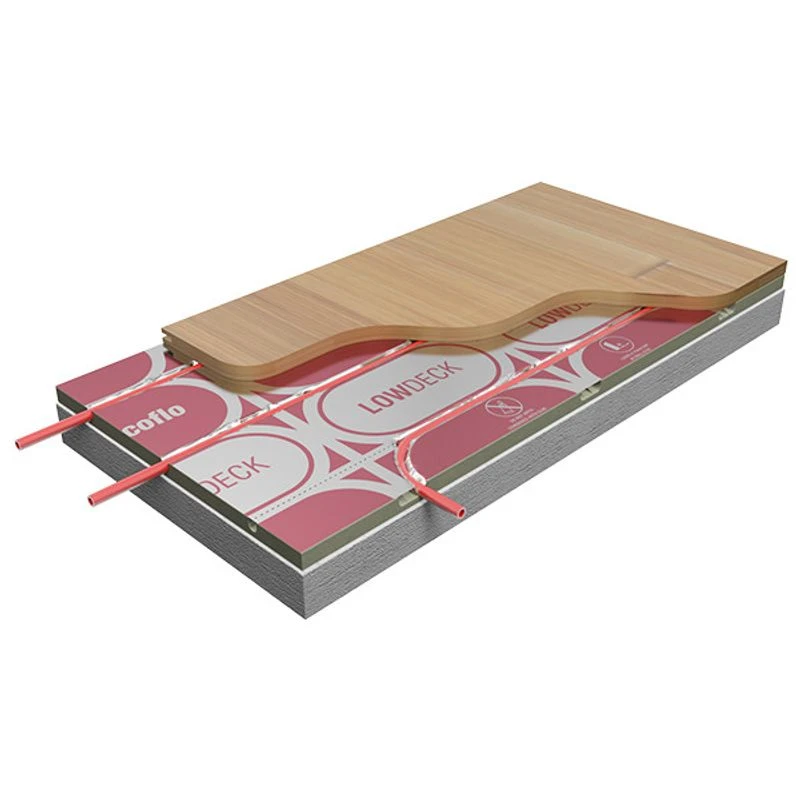

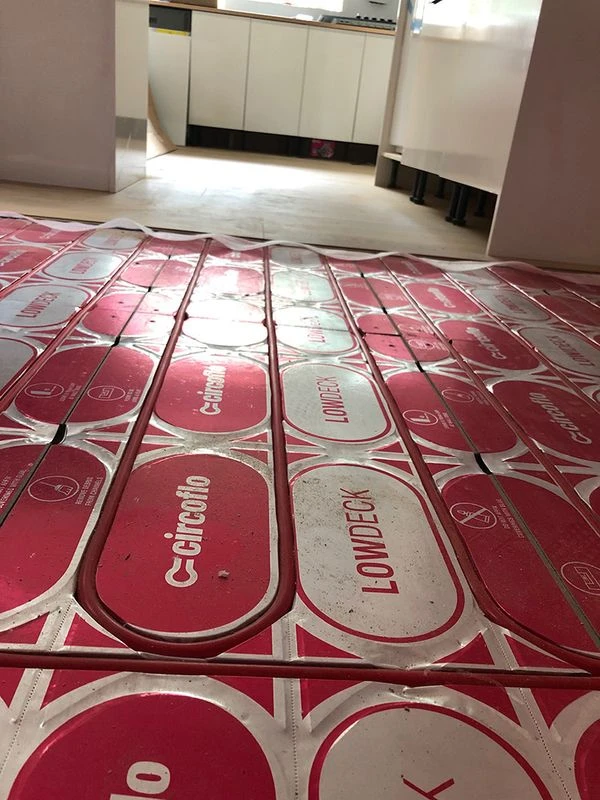

• For retrofit wooden floors you will also get:
• 27 x LowDeck Boards

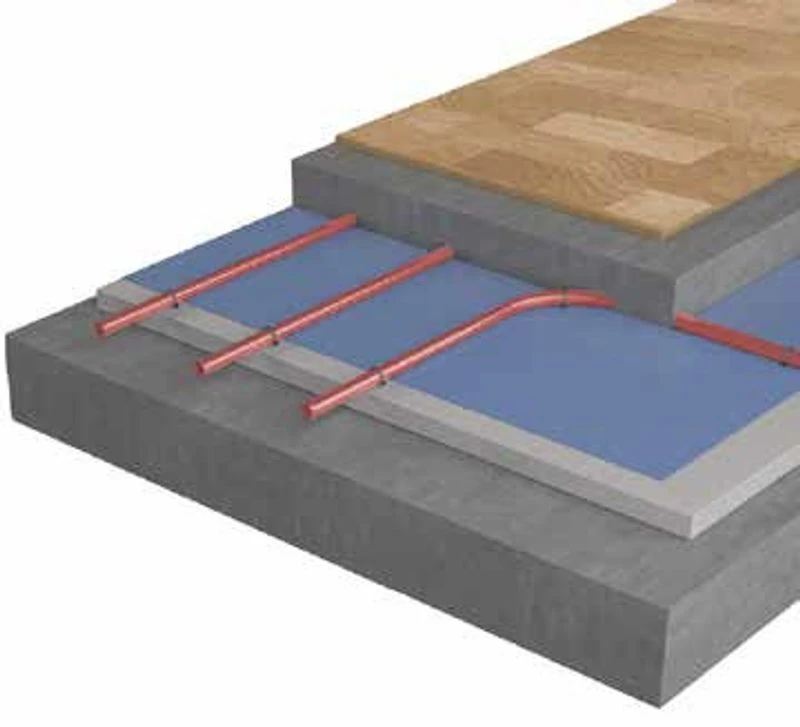

• For screed staple floors you will also get Circoflo:
• 1 x expansion foam with gaiter – 25mm x 145mm x 11mm
• 1 x 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)

Please note:

• Circoflo kits are supplied in panels with dimensions of 800mm x 400mm, providing the appropriate coverage for the m² of the kit.
