Isomass Isocheck Screedcheck XL5 Acoustic Underscreed – 1.5m X 50m

The Isocheck Screedcheck XL5 system from Isomass features a 5mm closed cell cross linked foam layer that has been designed to be placed within a masonry structural floor directly below the screed. This isolates the screed from the structural sub floor, and provides enough impact absorption to place it amongst the top performing systems available.

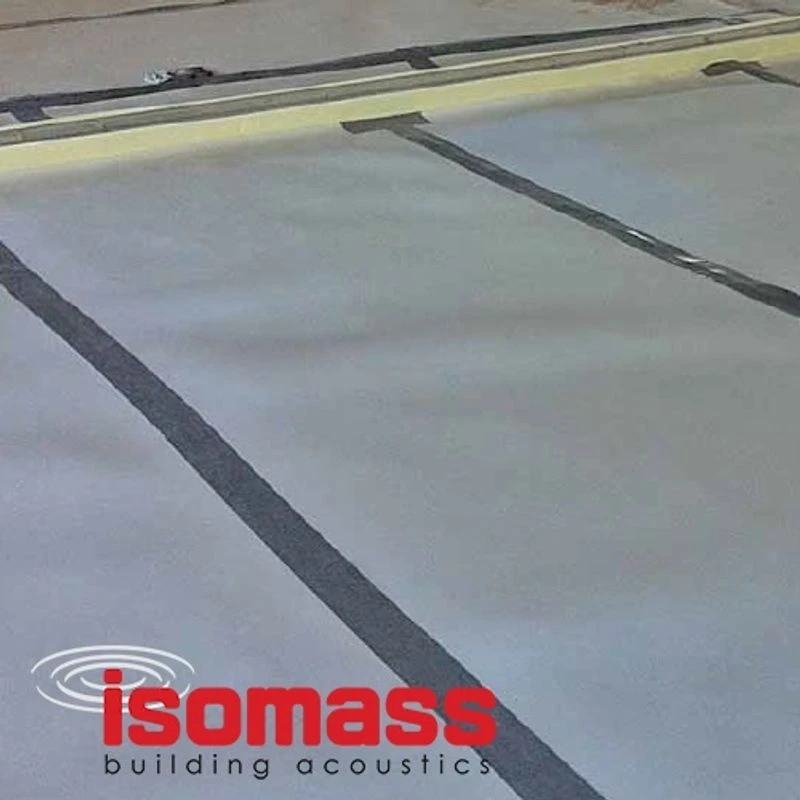

By ensuring that all the joints are taped, bridging will be eliminated which is the single greatest cause of failure of any system of this type.

When installed correctly, the XL5 system will enable compliance with Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 & 2015.

Isomass Isocheck Screedcheck XL5 Acoustic Underscreed Benefits

• Closed cells prevents water absorption which can impair acoustic performance.
• Rolls are light and easy to handle.

Technical

Width: 1.5m
Length: 50m
Thickness: 5mm
Foam Composition: Closed Cell Cross Linked Isopli
