JCW Sound Insulation Board Supreme 24 Acoustic Insulation Board – 1.2m X 600mm X 24mm

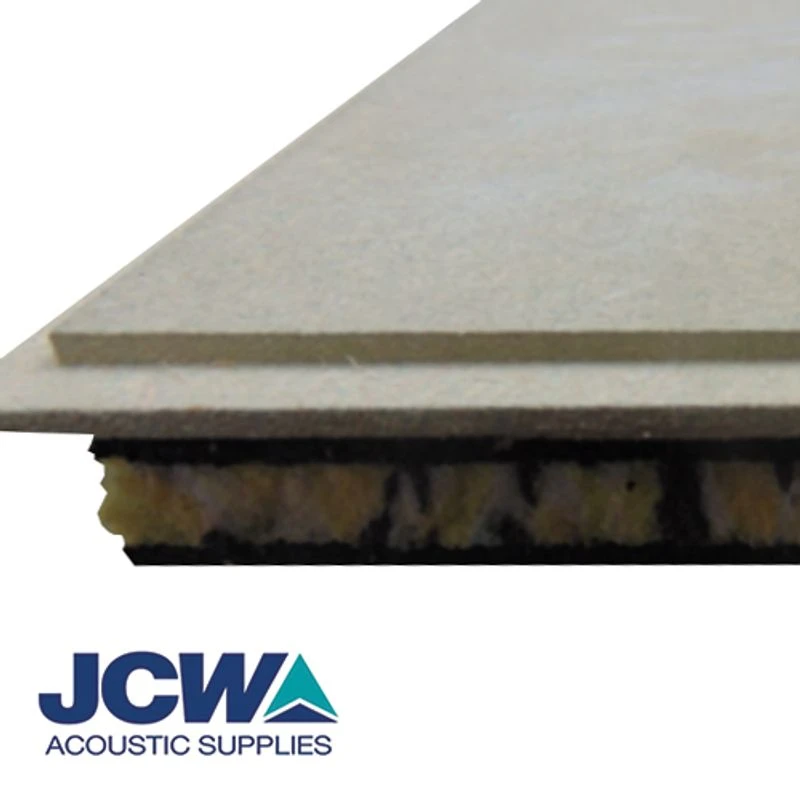

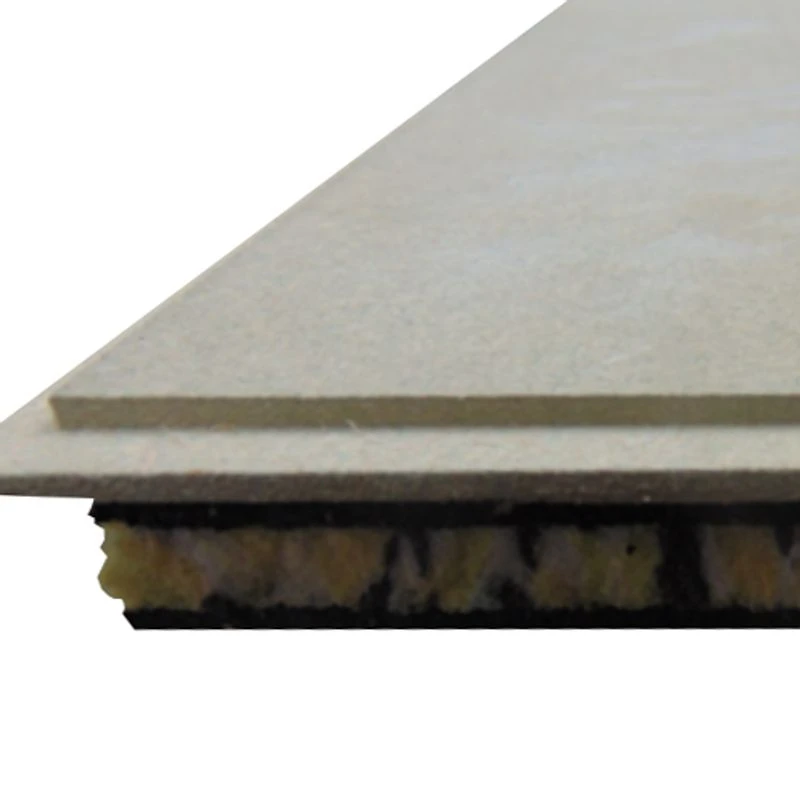

This Supreme sound insulation board from JCW Acoustic is an MDF-based acoustic overlay board for timber boards. Featuring a moisture-resistant 9mm TG4 MDF board with a pre-bonded 15mm high-performance resilient layer, it provides enhanced performance with excellent reduction of impact and airborne sound.

Substantially reducing sound transmission through timber floors, this acoustic shallow overlay board offers the most effective and quickest acoustic solution available on the market. With a thickness of only 24mm, it minimises construction height whilst remaining compliant with statutory regulations.

Features & Benefits: JCW Sound Insulation Board Supreme 24 Acoustic Insulation Board – 1.2m x 600mm x 24mm

• MDF-based top surface
• Ready for final floor installation
• Complies with Part E of the Building Regulations
• Effectively enhances airborne sound insulation
• Outstanding impact sound performance
• Ideal for existing timber floors
• 9kg weight per sheet
• 0.72m² sheet size
• 1.2m length x 600mm width x 24mm thickness

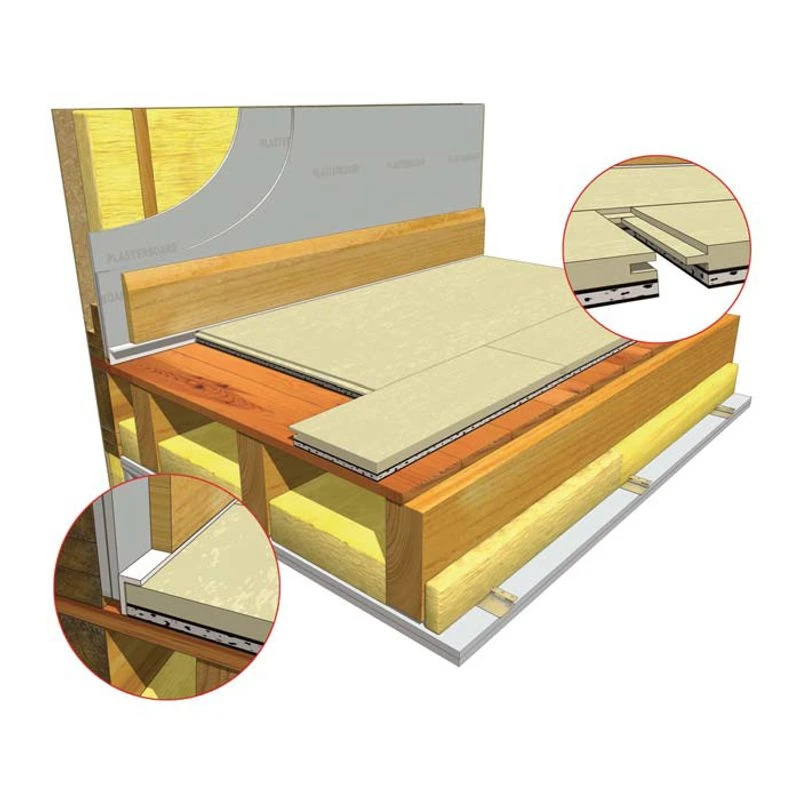

Recognised as robust details FFT5 resilient overlay shallow platform floor system, this acoustic insulation board provides the most convenient method for considerably improving the impact and airborne sound performance of your existing floor by overlaying the floor with an isolating layer and new hard-wearing surface.

Standards & Certification

• Acoustic tested data BRE LAB TEST DATA: TEST NO: L216-009, L216-010
• Airborne: Rw – 63dB Rw + Ctr – 53dB
• Impact: Ln, w – 48dB

Please note:

• This JCW Sound Insulation Board must be used in conjunction with JCW Perimeter Edging Strip to ensure Building Regulations compliance.
• There is a wide range of acoustic decking and flooring systems which vary from 19mm up to 38mm to suit all budgets and floor soundproofing applications.
