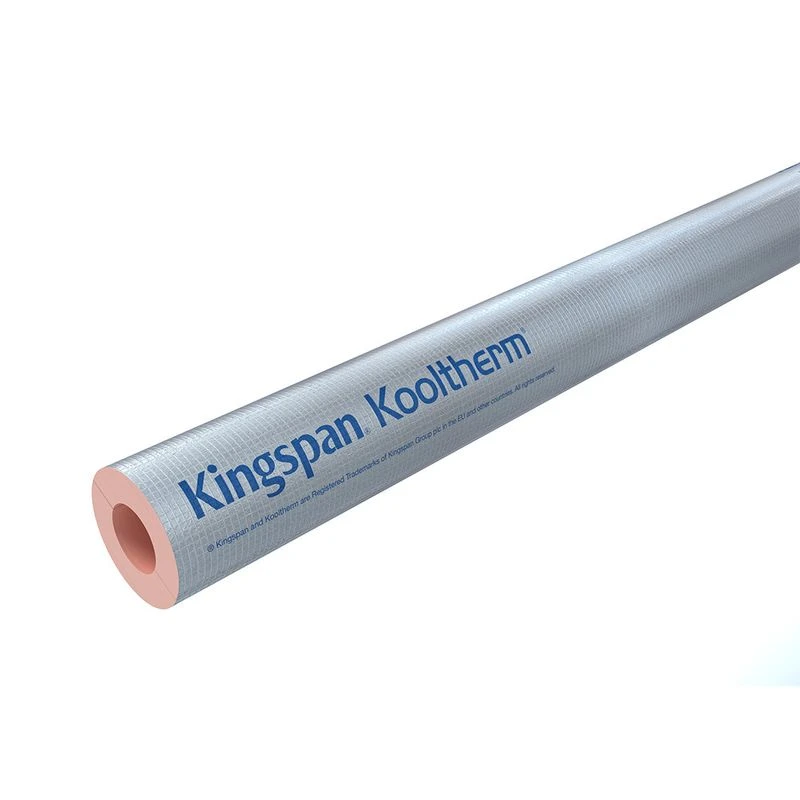

Kooltherm Phenolic Pipe Insulation Lagging – 114mm X 25mm X 1m

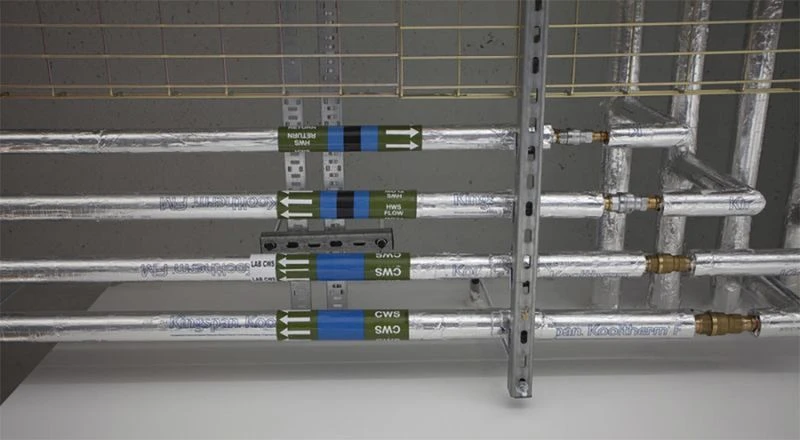

As an exceptional solution for building services and HVAC applications, this innovative Kooltherm Pipe Insulation offers the most efficient and thinnest option available. It is a great choice for both new build and refurbishment projects in an array of sectors, such as leisure, industrial, institutional, commercial and residential.

Thanks to its densely cross-linked structure, this phenolic pipe insulation boasts remarkable fire and smoke performance, making it highly resistant to ignition. In the event of fire exposure, the exterior surface creates a durable carbonaceous layer that limits heat generation and prevents the spread of flames. This long-term energy-saving solution delivers multiple benefits to everyone involved in the building process, including property developers, building owners, specifying engineers, M&E contractors, building services managers, facilities managers and installers.

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 114mm x 25mm x 1m

• 114mm pipe size
• 1m length
• 25mm wall thickness
• Effective yet thin pipe insulation for building services and HVAC applications
• Superior performance for cost-effectiveness, compressive strength and insulation efficiency
• Long-term energy-saving solution
• Densely cross-linked structure for low smoke emission and fire resistance
• Rigid non-fibrous thermoset modified resin insulant
• Perfectly suited for new build and refurbishment projects
• Environmentally friendly with low GWP and zero ODP and free from HCFC/CFC

In addition to being eco-friendly, this CFC/HCFC-free insulation offers exceptional performance in terms of cost-effectiveness, compression strength, insulation efficiency, fire resistance and low smoke emission. It is based on award-winning patented technology, utilising a non-fibrous rigid thermoset-modified resin insulant with a blowing agent that has low Global Warming Potential (GWP) and zero Ozone Depletion Potential (ODP). With a thermal conductivity of 0.025W/mK at 10°C, it is an excellent choice for providing energy efficiency.

This Kooltherm Pipe Insulation is certified by the KIWA N.V. Technical Assessment Body which conducted a thorough evaluation and certification of its factory production control, application methods and performance. Additionally, it holds Local Authority Building Control (LABC) Registered Detail RD certification and KIWA BDA Agrément certification, while its use is covered by an LABC Warranty.

Standards & Certification

• European Reaction to Fire: BL,s1,d0 to EN 13501-1
• Spread of flame: Class 1 to BS 476-7
• Thermal conductivity: 0.025W/mK at 10°C, mean declared in accordance with EN14314
• FM Approved: Approval Standard Class 4924
• KIWA BDA Agrément: certificate BAP 15-036/01/C
• LABC Registered Detail RD: certificate number EWW382
