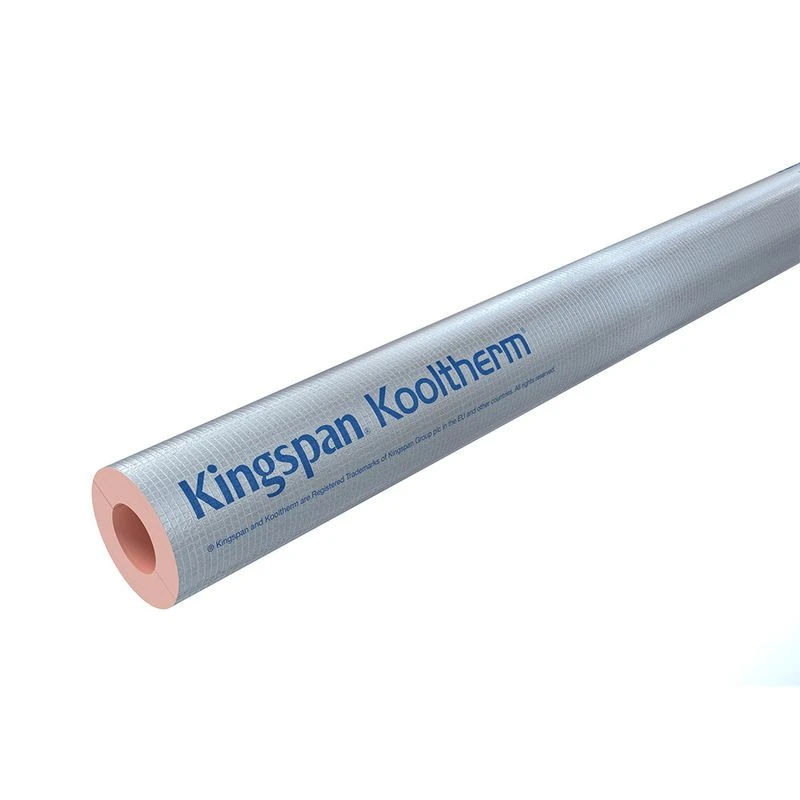

Kooltherm Phenolic Pipe Insulation Lagging – 67mm X 20mm X 1m

Kooltherm high-performance pipe insulation makes an effective solution for long-term energy saving. It is thin and efficient, and products perform fantastically in terms of fire resistance, compressive strength, insulation efficiency and low smoke emission. As well as being cost-effective, they are CFC/HCFC-free, non-fibrous, premium performance rigid thermoset modified resin insulants.

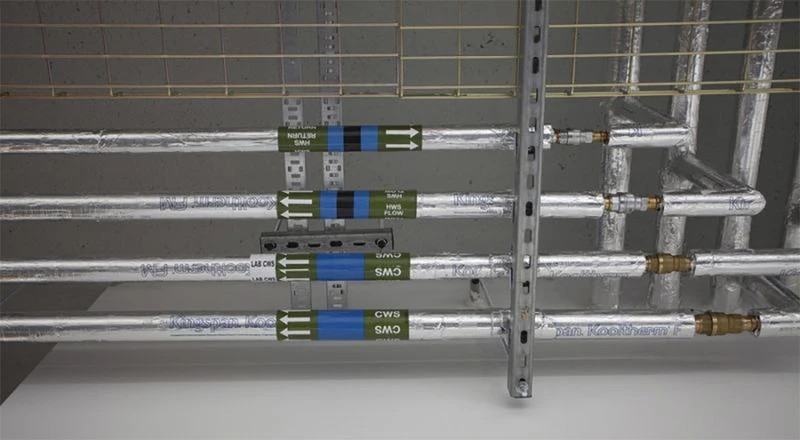

Products are perfectly suited to pipework in building services/HVAC applications, as well as both new build and refurbishment projects across various sectors. These sectors include commercial, residential, industrial, institutional, and leisure. They also work to benefit installers, specifying engineers, M&E contractors, building services managers and facilities managers, property developers and owners of the buildings.

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 67mm x 20mm x 1m

• 16 lengths in a pack
• 1m in length
• Pipe size of 67mm
• 20mm wall thickness
• Thermal conductivity of 0.025 W/mK
• Compatible with both new build and refurbishment projects across a variety of sectors
• Thin and efficient
• Allows long-term energy saving
• Cost-effective with high performance

Not only based on award winning patented technology, but Kooltherm Pipe Insulation products are made with blowing agents that are in low in Global Warming Potential (GWP) and have zero Ozone Depletion Potential (ODP). In terms of performance, application methods and factory production control, products are reviewed and certified by KIWA NV Technically Assessment Body. Performance is also tested by Local Authority Building Control and covered by an LABC Warranty.

Structures are densely cross-linked to make ignition more difficult and external surfaces form strong carbonaceous layers when subjected to fire. Heat generation is prevented as a result, in turn avoiding spreading flames. Excellent fire and smoke performance characteristics are determined by its FM Approval Standard Class 4924 and exceptional European Reaction to Fire performance of BL,s1,d0.

Standards & Certification

• LABC Registered Detail RD: certificate number EWW382
• KIWA BDA Agrément: certificate BAP 15-036/01/C
• Thermal conductivity: 0.025 W/m·K at 10°C declared in accordance with EN14314
• Reaction to fire: EN 13501-1
• Spread of flame: Class 1 to BS 476-7
