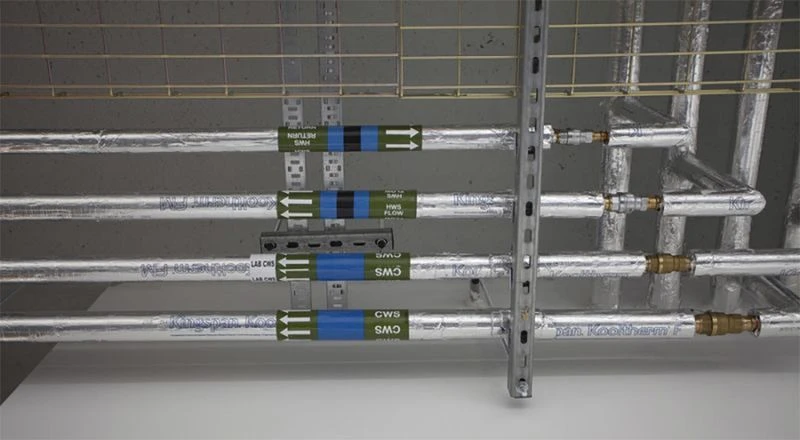

This innovative Kooltherm Pipe Insulation is a superior insulation solution for HVAC applications and building services, providing the most efficient and thinnest option available on the market. It’s perfectly suited for both new build and refurbishment projects in a variety of sectors, such as leisure, industrial, institutional, commercial and residential.
Thanks to its densely cross-linked structure, this phenolic pipe insulation boasts impressive smoke and fire performance, making it difficult to ignite. Additionally, its exterior surface creates a robust carbonaceous layer that reduces heat generation and prevents the spread of flames in case of fire exposure. This long-term energy-saving solution provides numerous advantages to everyone involved in the building process, such as property developers, building owners, specifying engineers, M&E contractors, facilities managers, building services managers and installers.

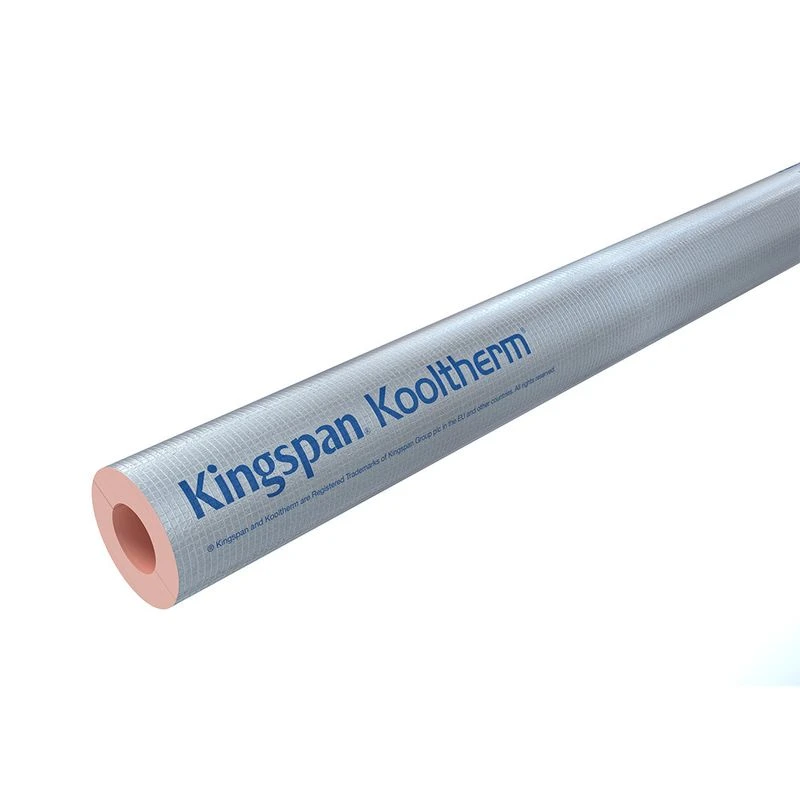

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 67mm x 25mm x 1m
- 25mm wall thickness
- 67mm pipe size
- 1m length
- Environmentally friendly with low GWP and zero ODP and free from CFC/HCFC
- Rigid non-fibrous thermoset modified resin insulant
- Long-term energy-saving solution
- Effective and thin pipe insulation for building services and HVAC applications
- High performance for insulation efficiency, compressive strength and cost-effectiveness
- Densely cross-linked structure for low smoke emission and fire performance
- Perfect for both new build and refurbishment projects
Besides being environmentally friendly, this CFC/HCFC-free insulation also provides exceptional performance in terms of low smoke emission, fire resistance, insulation efficiency, compression strength and cost-effectiveness. Based on award-winning patented technology, it employs a non-fibrous, high-performance rigid thermoset-modified resin insulant with a blowing agent that has low Global Warming Potential (GWP) and zero Ozone Depletion Potential (ODP). With thermal conductivity that can go as low as 0.025W/mK at 10°, it’s a fantastic choice for providing energy efficiency.
This Kooltherm Pipe Insulation is certified by the KIWA N.V. Technical Assessment Body, which thoroughly evaluated and certified its factory production control, application methods and performance. Additionally, it’s supported by Local Authority Building Control (LABC) Registered Detail RD certification and KIWA BDA Agrément certification, while its use is covered by an LABC Warranty.
Standards & Certification
- KIWA BDA Agrément: certificate BAP 15-036/01/C
- Thermal conductivity: 0.025W/mK at 10°C, mean declared in accordance with EN14314
- FM Approved: Approval Standard Class 4924
- LABC Registered Detail RD: certificate number EWW382
- European Reaction to Fire: BL,s1,d0 to EN 13501-1
- Spread of flame: Class 1 to BS 476-7
