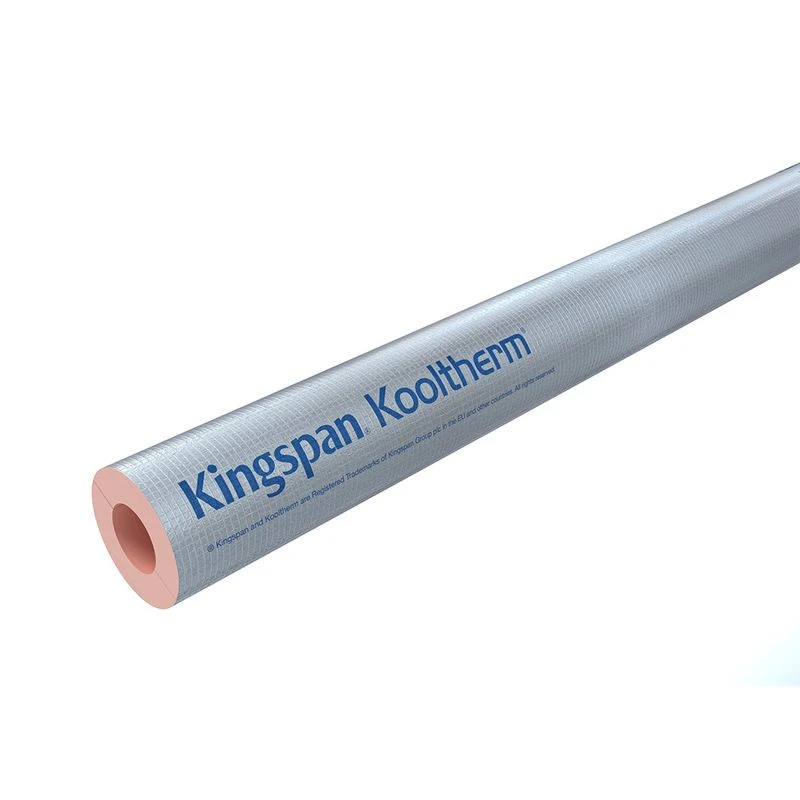

Kooltherm Phenolic Pipe Insulation Lagging – 76mm X 20mm X 1m

This Kooltherm Pipe Insulation is a top-performing insulation option for HVAC systems and building services. Recognised for its efficient and thin design, it is ideal for new construction and remodelling projects in various sectors including leisure, industrial, institutional, residential and commercial.

Featuring a dense, cross-linked structure, this Kooltherm pipe insulation from Kingspan provides outstanding fire and smoke resistance properties which are demonstrated by its European Reaction to Fire performance of BL,s1,d0 and FM Approval per Standard Class 4924. With thermal conductivity as low as 0.025 W/m·K, it delivers a highly effective long-lasting energy-saving solution.

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 76mm x 20mm x 1m

• 1m length
• 20mm wall thickness
• 76mm pipe size
• Densely cross-linked structure for low smoke emission and outstanding fire performance
• Ideal for various new build and refurbishment projects
• Rigid non-fibrous thermoset modified resin insulant
• 0.025W/mK thermal conductivity
• Highly effective and long-term energy-saving solution
• High performance for insulation efficiency, cost and compressive strength

This pipe insulation is based on patented, award-winning technology and is free from HCFC and CFC with low Global Warming Potential and zero Ozone Depletion Potential. Its factory production control, application methods and performance have been thoroughly certified by KIWA N.V. Technical Assessment Body and Local Authority Building Control and it comes with an LABC Warranty.

Standards & Certification

• Reaction to fire: EN 13501-1
• Spread of flame: Class 1 to BS 476-7
• Thermal conductivity: at 10°C mean declared in accordance with EN14314
• LABC Registered Detail RD: certificate number EWW382
• KIWA BDA Agrément: certificate BAP 15-036/01/C
