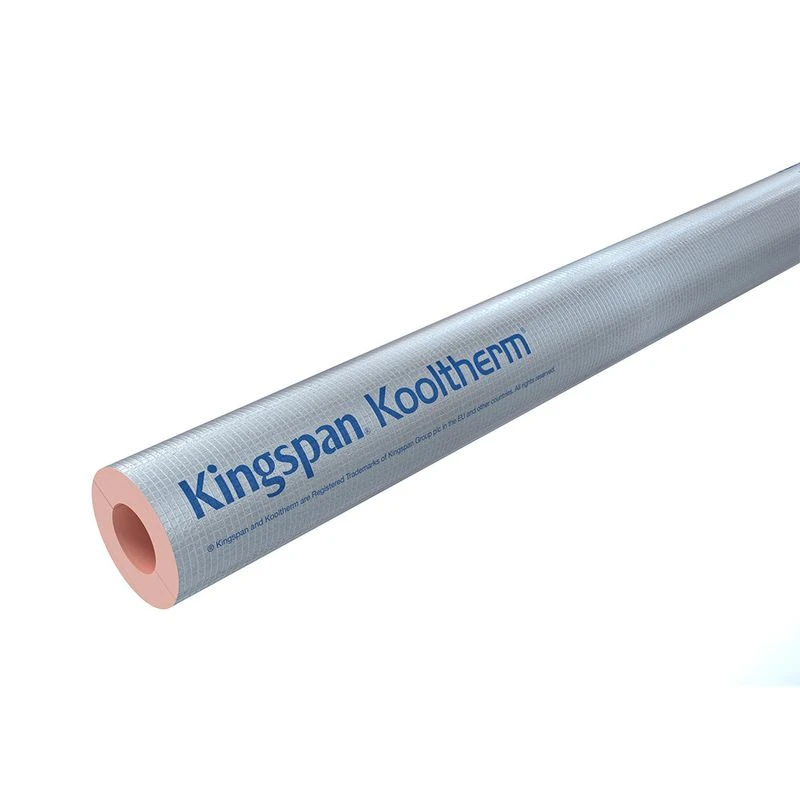

Kooltherm Phenolic Pipe Insulation Lagging – 76mm X 25mm X 1m

Suitable for both new build and renovation projects, Kooltherm insulation pipe insulation is recognised for its efficiency and thin profile. Both traits make it the prime choice for HVAC and building services in various settings, including residential, commercial, institutional, industrial, and leisure. It also offers excellent insulation efficiency, fire resistance, low smoke emission, compressive strength, and cost-effectiveness.

Due to its dense cross-linked structure, this insulation is hard to ignite. In case of fire exposure, it produces a durable carbonaceous layer on its exterior, which reduces heat generation and limits further spread of the flames. It also boasts a best-in-class European Reaction to Fire performance of BL,s1,d0 and is FM approved in accordance with the Approval Standard Class 4924. Therefore, it is a perfect solution for intended applications thanks to its exceptional fire and smoke performance.

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 76mm x 25mm x 1m

• Thermal conductivity of 0.025 W/mK
• 1m in length
• 76mm pipe size
• Wall thickness of 25mm
• Highly effective and energy-saving product
• Offers advantages for specifying engineers, M&E contractors, building service and facilities managers, property developers, and building owners
• Hard to ignite dense cross-linked structure
• Suitable for both new build and renovation projects
• Prime choice for HVAC and building service in various settings

Alongside thermal conductivities as low as 0.025 W/mK, Kooltherm Pipe Insulation systems and products rely on a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP). These non-fibrous, rigid thermoset modified resin insulants do not contain any CFC or HCFC and are based on patented technology.

The KIWA N.V. Technical Assessment Body has conducted a thorough evaluation and granted certification to Kooltherm Pipe Insulation for its performance, application methods, and factory production control. Its usage is covered by KIWA BDA Agrement certificate BAP 15-036/01/C, as well as LABC Warranty. Local Authority Building Control has also assessed its performance and provided coverage under LABC Registered Detail RD certificate number EWW382.

Standards & Certification

• KIWA BDA Agrément: certificate BAP 15-036/01/C
• Spread of flame: Class 1 to BS 476-7
• Thermal conductivity: 0.025W/mK at 10°C, mean declared in accordance with EN14314
• FM Approved: Approval Standard Class 4924
• LABC Registered Detail RD: certificate number EWW382
• European Reaction to Fire: BL,s1, d0 to EN 13501-1
