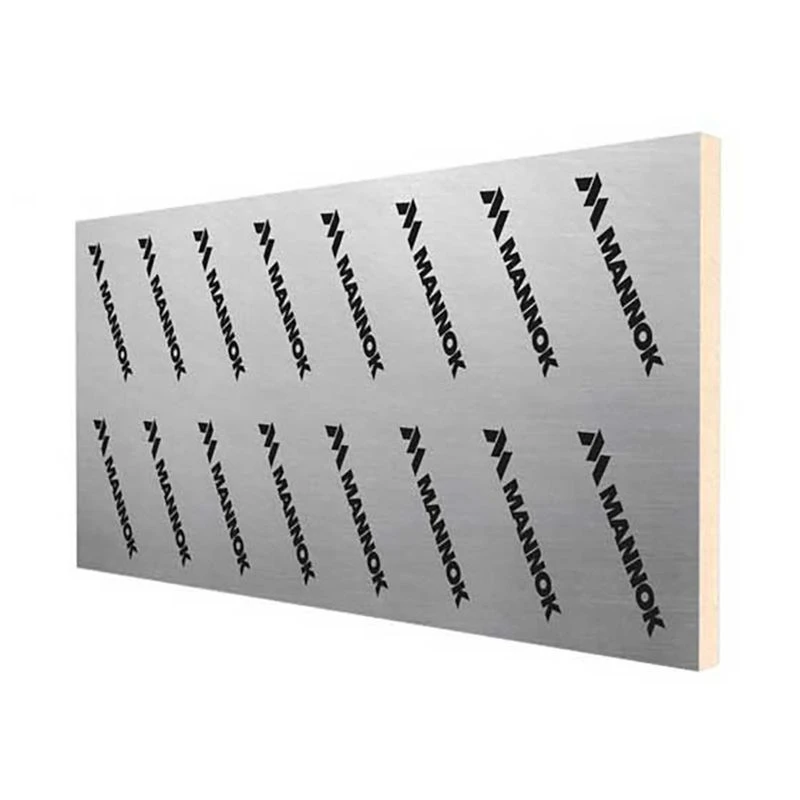

Mannok PIR Insulation Board – 2400mm X 1200mm X 100mm

Suited to both new build and refurbishments projects, Mannok Therm MF includes gas filled cells that provide exceptional strength and thermal performance. Both sides of its polyisocyanurate foam core are bonded with a low emissivity composite foil facing for heightened performance in individual applications.

Alongside a square edge design, the high compressive strength of Mannok Therm MF enables it to tolerate both dead and imposed loads transmitted through the floor. As a result, it is suitable for a variety of domestic and most commercial purposes. Mannok Therm MF is also designed for use when you wish to improve the thermal efficiency of existing floors, and any underfloor heating system in need of elevated performance.

Features & Benefits: Mannok PIR Insulation Board – 2400mm x 1200mm x 100mm

• For a range of applications, including domestic and most commercial
• 2400mm length x 1200mm width x 100mm thickness
• Low thermal conductivity of 0.022W/mK
• Square edging
• Can decrease the thickness required to attain design U-values
• Heat loss from air infiltration through suspended timber floors can be reduced
• Gas filled cells offer exceptional strength and thermal efficiency
• Both sides bonded with a low emissivity composite foil facing
• Features a rigid thermoset insulation core that is free of fibres

With low thermal conductivity of 0.022W/mK, Mannok Therm MF can reduce heat loss from air infiltration through suspended timber floors. Moreover, this product can decrease the thickness required to attain design U-values.

Standards & Certification

• Fire performance: Class 1 to BS 476-7 and Euroclass E to BS EN 13501-1
