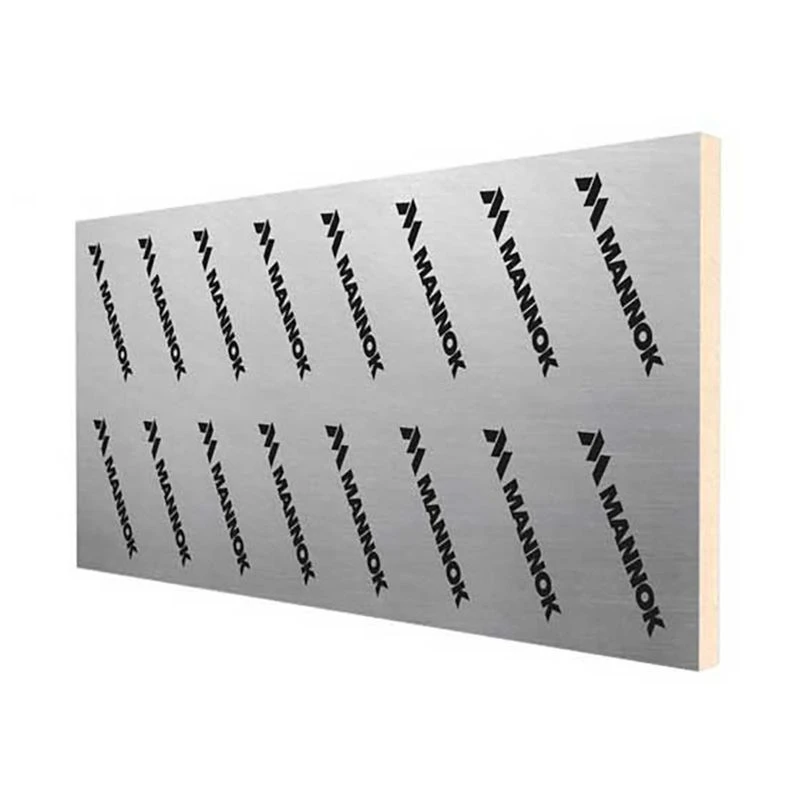

Mannok PIR Insulation Board – 2400mm X 1200mm X 150mm

As an exceptional solution for floor insulation, this Mannok Therm MF insulation features a fibre-free polyisocyanurate foam core that is coated with a bonded foil facing on both sides. Its gas-filled cells deliver exceptional thermal performance and strength while the low emissivity foil facings boost its effectiveness for individual applications.

Thanks to its high compressive strength, this insulation can easily endure imposed and dead loads transmitted through the floor. It is perfectly suited for use in a variety of applications, including refurbishment projects and new builds, in most commercial and domestic properties. It is an excellent option for optimising the thermal performance of your underfloor heating system or existing floor.

Features & Benefits: Mannok PIR Insulation Board – 2400mm x 1200mm x 150mm

• Low thermal conductivity of 0.022W/mK
• Improves the thermal performance of existing floors
• Rigid thermoset PIR insulation core with square edges
• Optimises underfloor heating systems
• Ideal for both refurbishment and new build projects
• Low emissivity foil facings
• Can be used in domestic and most commercial applications
• Minimises heat loss
• High compressive strength
• 2400mm length x 1200mm width x 150mm thickness

What’s more, this Mannok Therm MF insulation has thermal conductivity as low as 0.022W/mK, making it possible to use a thinner insulation thickness to achieve your desired uValue. It also helps to minimise heat loss caused by air infiltration through suspended floors.

Standards & Certification

• Fire performance: Euroclass E to BS EN 13501-1 and Class 1 to BS 476-7
