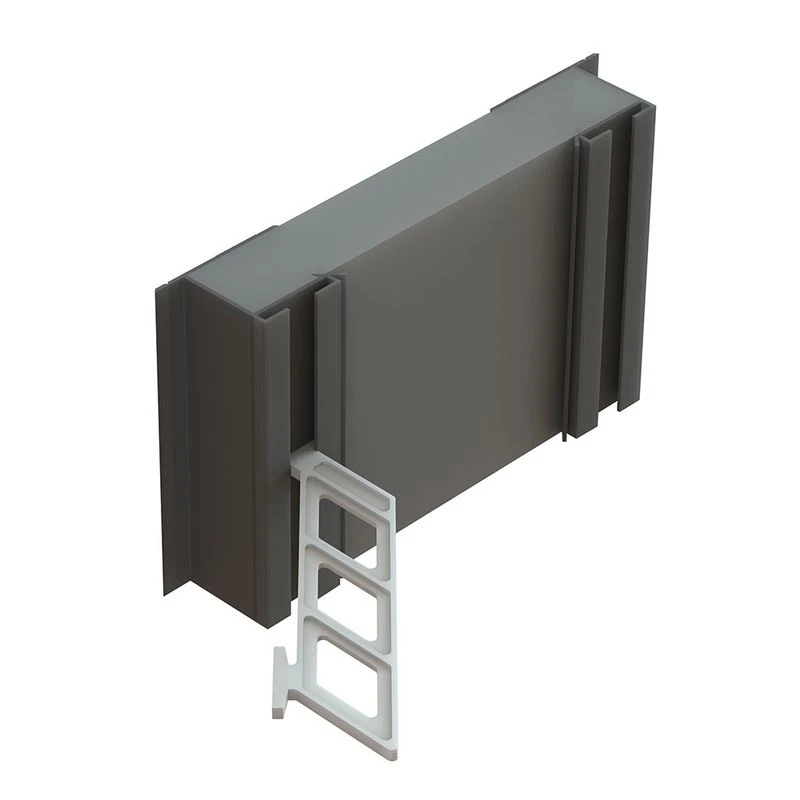

Timloc 2.4m Thermo-loc Platinum Plus FX Multi Check Reveal Cavity Closer – 50mm To 100mm

This Thermo-loc Platinum Plus Multi check reveal cavity closer is suitable for cavities between 50mm and 100mm. It is a durable and resilient barrier which can be used for eradicating damp and cold bridging from around sills, windows and walls.

This cavity closer from Timloc offers an effective thermal barrier and Damp Proof Course between the inner frame and outer wall leaf. Featuring a lightweight and rigid uPVC profile fitted with insulation material, this cavity closer can be used to close openings in cavity walls including external walls and windows. It can also be used to pre-form openings when the window frames and/or door need to be installed at a later date.

Features & Benefits: Timloc 2.4m Thermo-loc Platinum Plus FX Multi Check Reveal Cavity Closer – 50mm to 100mm

• Zero Ozone Depletion
• Cavity width of 50mm to 100mm
• Global Warming Potential of less than 5
• Easy to cut with pre-cut grooves and fitted on-site
• Durable and resistant to decay
• Rigid profile extrusion
• Exceeds the minimum thermal resistant path of 0.45m²K/W stipulated in accredited construction detail
• Quick and simple on-site trimming to cope with ‘rogue’ cavity widths

The ‘check reveal’ is a feature that is especially common in Central Europe and Scotland and includes an opening formed in the outer masonry skin where the external structural opening is smaller than the window frame. This means the exterior face of the window frame when fitted, pushes up against the back of the outer skin. In this situation, the primary weather seal is formed between the opening and the front face of the window instead of a conventional ‘flush’ reveal and the outer perimeter of the window.

The Timloc range, of cavity closers and acoustic fire-rated cavity stops, deliver a range of insulation and performance to meet the differing requirements of today’s projects. The multi-width profiles have been specially created to allow stockists and merchants to hold two sizes only, which are quick and easy to trim on-site to fit a variety of cavity width requirements.

Standards & Certification

• Complies with building regulations approved documents C, L1 & L2
• Satisfied BRE document
• Satisfies NHBC Standards
• Manufactured to BS EN ISO 9001 and BS EN ISO 14001
