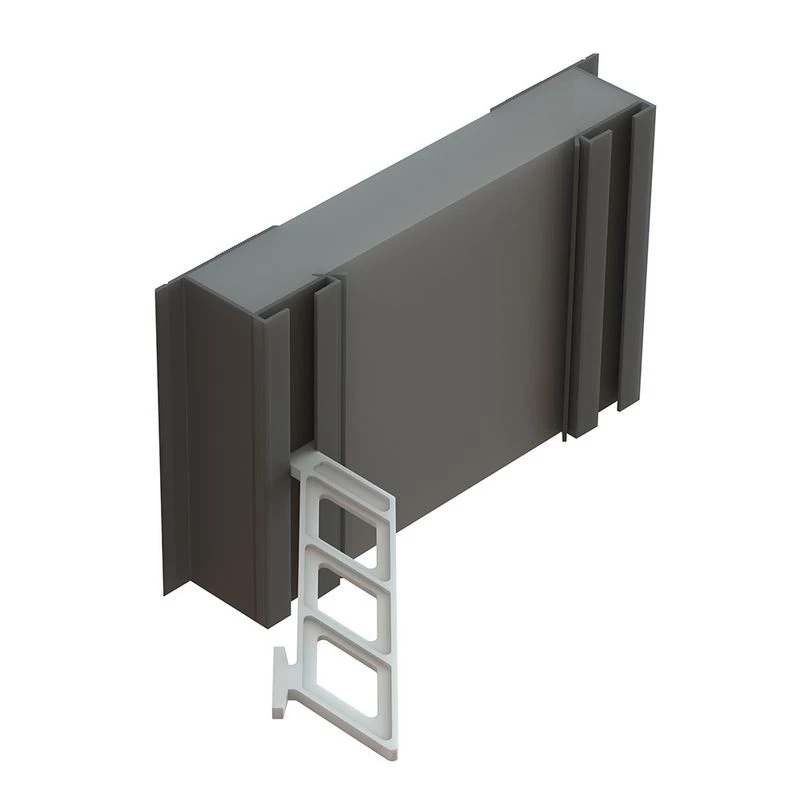

Timloc 2.4m Thermo-loc Platinum Plus Multi Cavity Closer – 50mm To 100mm

For a durable and resistant barrier, this Thermo-loc Platinum Plus Multi Cavity Closer eliminates cold bridging and damp from around walls, windows and sills. It forms an appropriate Damp Proof Course and thermal barrier between the inner frame and outer wall leaf.

It is easy to cut down the multi-width profiles on-site. This means that your cavity closers can suit numerous cavity width requirements. Both rigid and lightweight, the UPVC profiles are equipped with insulation material.

Features & Benefits: Timloc 2.4m Thermo-loc Platinum Plus Multi Cavity Closer – 50mm to 100mm

• For second fix applications
• Rigid profile extrusion for durable and resistant barriers
• Easy on-sit trimming to cope with “rogue” cavity widths
• Withstands decay
• Pre-cut grooves for cutting and installing
• Ozone Depletion of Zero and Global Warming Potential of less than 5

This closer shuts openings in cavity walls, including external walls and windows, and can also be used to pre-form openings when the door and/or window frames are yet to be installed. It is important to note that cavity closers are non-load bearing and are not an adequate substitute for traditional methods of fixing window and door frames to masonry.

The cavity closer exceeds the minimum thermal resistance path of 0.45m2k/w stipulated in the accredited construction detail.

Standards & Certification

• Manufactured to BS EN ISO 9001 and BS EN ISO 14001
• Meets all relevant British Standards
• Complies with Building Regulation Approved Documents C, L1 & L2
• Satisfies BRE document ‘Thermal insulation – avoiding risks’
• Satisfies NHBC standards

Please note:

• Joining ‘off cut’ sections should be kept to a minimum and not carried out to sill sections.
• Insulation should be extended from the lower closer profile to allow this to slot into the upper profile to maintain a rigid section.
• All overlaps should be sealed with tape.
