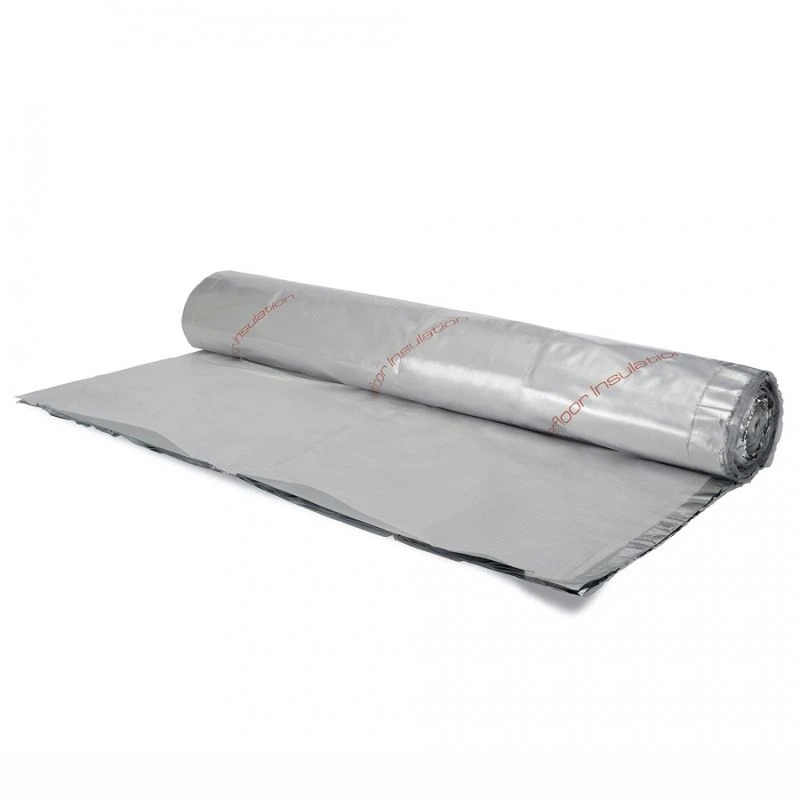

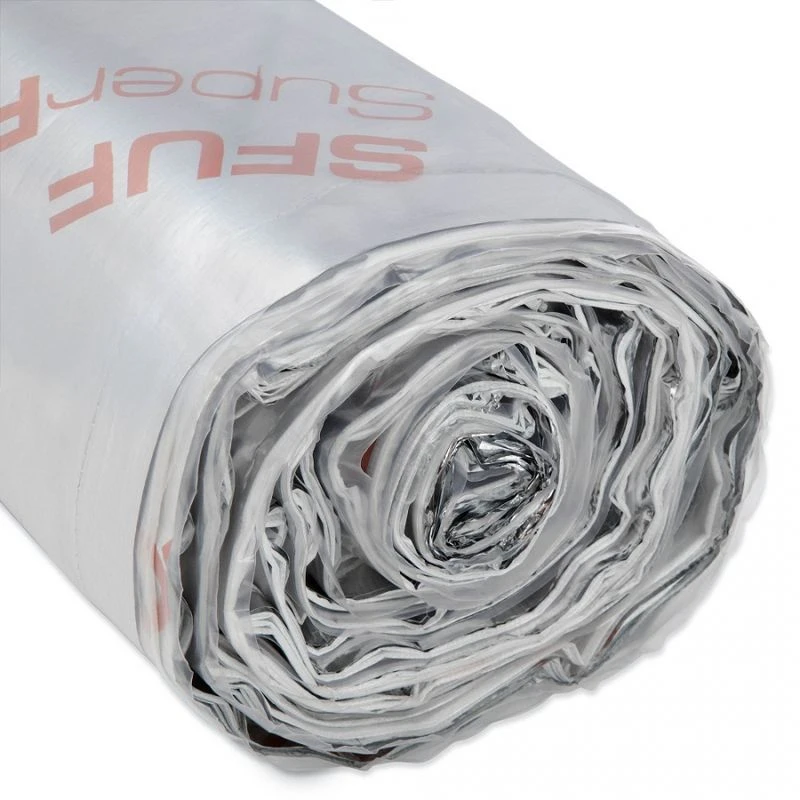

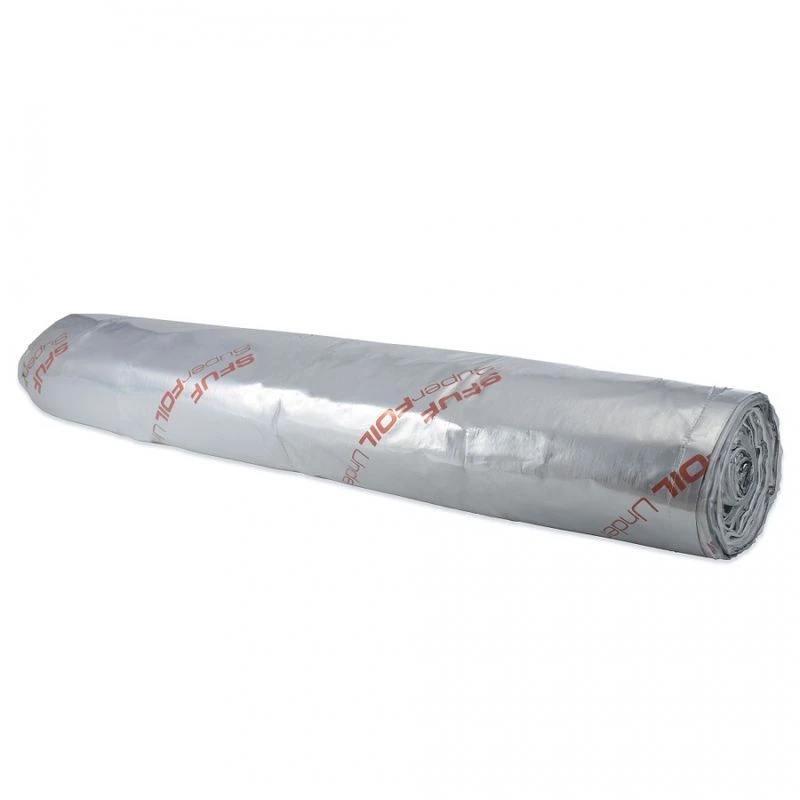

Underfloor Silver Foil Insulation SFUF By SuperFOIL – 1.5m X 8m Roll

SuperFOIL SFUF is a versatile and high-performing insulation product that can be used in a range of locations, including floors, walls, and roofs. Its slim profile makes it ideal for applications requiring slim thermal insulation, such as under screeded or laminate floors, and over or under suspended floors. With grid markings that make for easy laying, it is also suitable for insulating underfloor radiant heating pipes.

SFUF is not only a top-performing insulation product but also contributes to the air tightness of your building, it delivers sound insulation and can reduce impact noise by up to an estimated 22dB, while also serving as a thermal break, eliminating and lessening cold bridging when turned up walls.

Features & Benefits: Underfloor Silver Foil Insulation SFUF by SuperFOIL – 1.5m x 8m Roll

• 8m length x 1.5m width x 6mm thickness
• 12m² roll size
• Roll weight of 6.15kg
• Thermal Resistance – rValues: Core rValue of 0.8mK/W
• Thirteen layers
• Acoustic performance of up to 22dB
• Silver in colour
• For use in a range of locations

With 13 layers of reflective foil, thermo foam separation layers, and a PE layer, radiant energy is reflected back into the room to meet or improve uValues in both new build and renovation projects. Its ability to resist the passage of moisture and reflect heat makes it a standout choice for hot water underfloor heating systems and other slimline insulation needs.

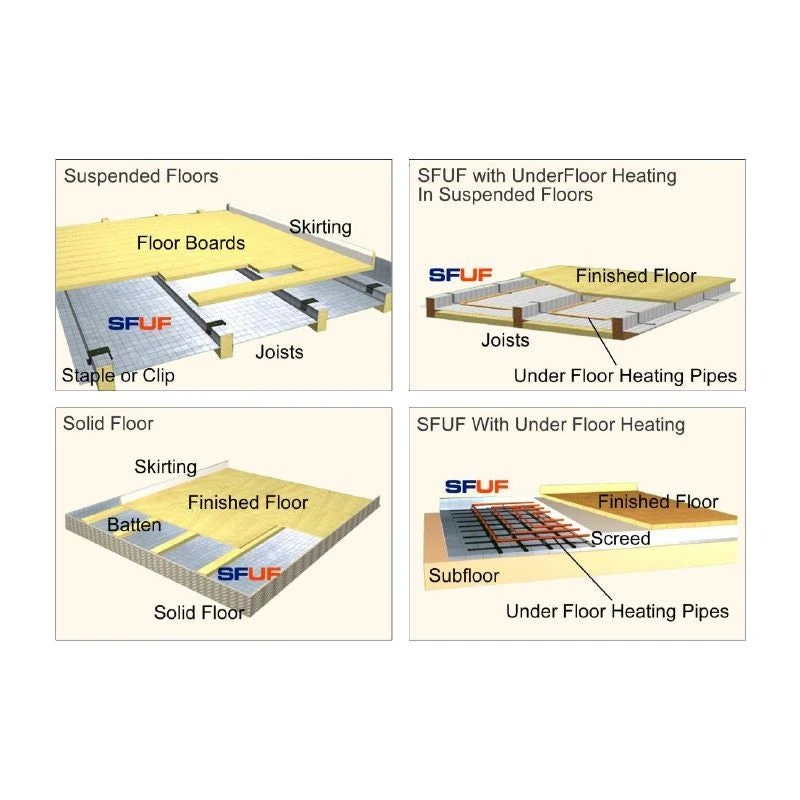

When using SFUF with wet underfloor heating, lay it on a clean, dry, and smooth surface, with 100mm lapping up the wall. Follow manufacturer’s instructions for underfloor heating and screeding. For SFUF over joists or suspended floors, start at the wall edge with 100mm lapping and staple in place, butt the edges together and seal with foil tape, then install decking to manufacturer’s instructions. For SFUF under joists on suspended floors, roll it out and staple in place, butt edges together, and seal with foil tape. Seal SFUF around the perimeter or lap it up the wall above the floor deck.
